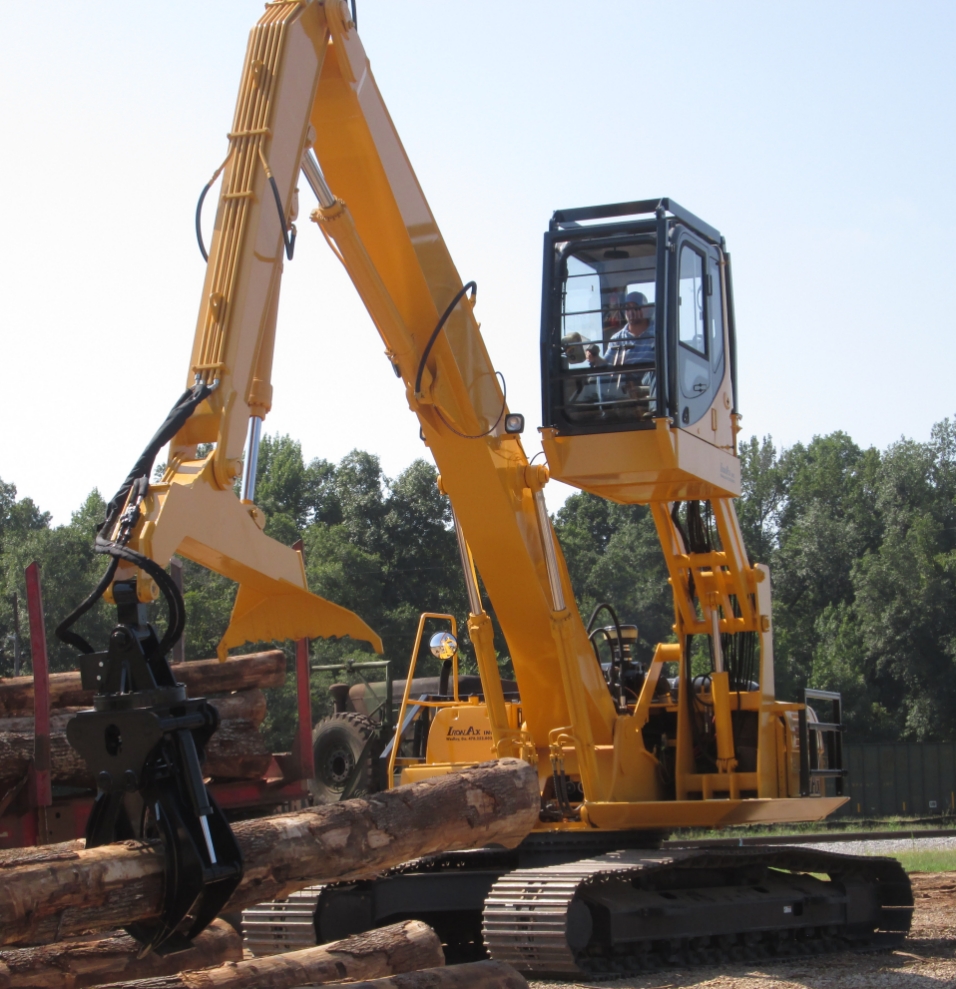

The Iron Ax 925 Log Loader is a heavy duty machine with many benefits and advantages. The machines are equipped with a Cummins engine, and a double section variable displacement piston pump producing 60.8 gallons of oil flow per section and up to 4,975 pounds of hydraulic pressure. The machine is equipped with a main boom, stick, live heel, and an Iron Ax grapple. The grapple has a 60” opening wth a 360 degree hydraulic rotator.

FEATURES

Engine
The machine is powered by a high efficiency Cummins QSB 6.7 - 490 cubic inch electronically controlled turbo diesel engine. The engine operates at 2,200 RPM’s and is highly fuel efficient. It is cooled by a hydraulically driven automatic variable speed reversible fan through an aluminum radiator. This system is highly efficient in dissipating heat.

Operation
The log loader features a self elevating cab. The operator has total control of the height of the cab. The maximum elevation is 17 feet eye level above the ground for superior visibility.

Forestry & Cab Guard Package
Each log loader is equipped with a guard package for the cab and side compartment and heavy duty running boards that will also assist in protecting the machine in its operating environment.

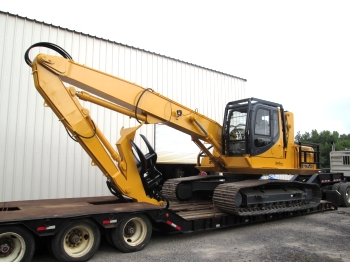

The boom tucks under for easy transport and is of legal height. The grapple doesn’t have to be removed in order to transport the machine.   The machine features an easy maintenance system by keeping all of the filters together in an easily accessible location.

SELF ELEVATING CAB

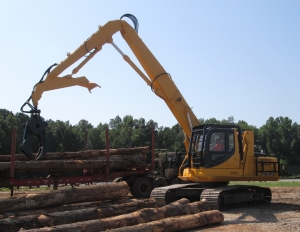

The cab at the lowest level.

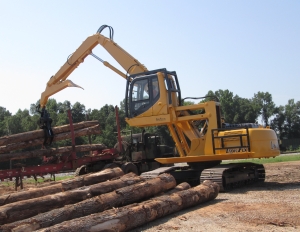

The cab at mid level.

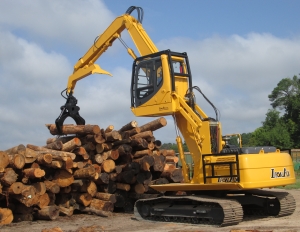

The cab at the highest level.

The operator has total control over the height of the cab from the lowest level to the highest and any point in between.

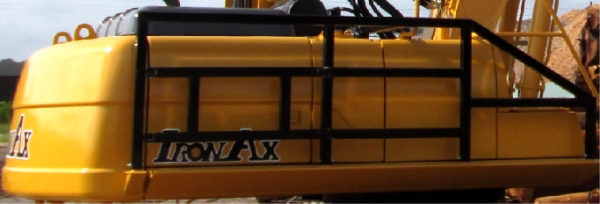

Our forestry cab guard package offers cab and side compartment protection as well as heavy duty running boards that will protect the machine in its operating environment.

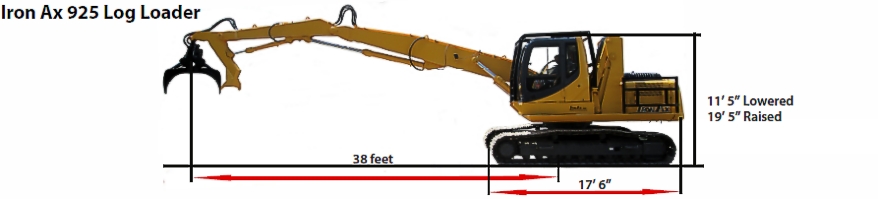

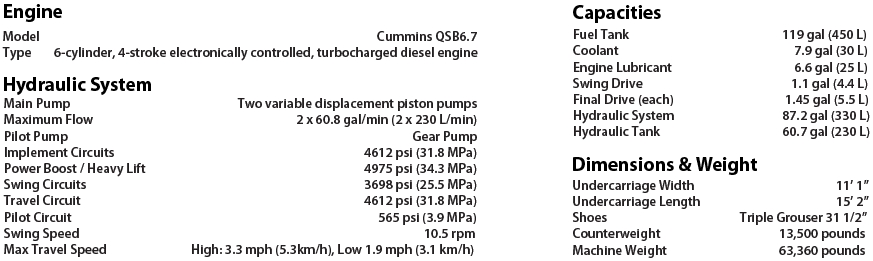

SPECIFICATIONS

This machine sits on 180” x 31 1/2” triple grouser shoes per side which gives a total of 11,340 square inches of track on the ground supporting 63,360 pounds equaling 5.587 pounds per square inch of weight.
